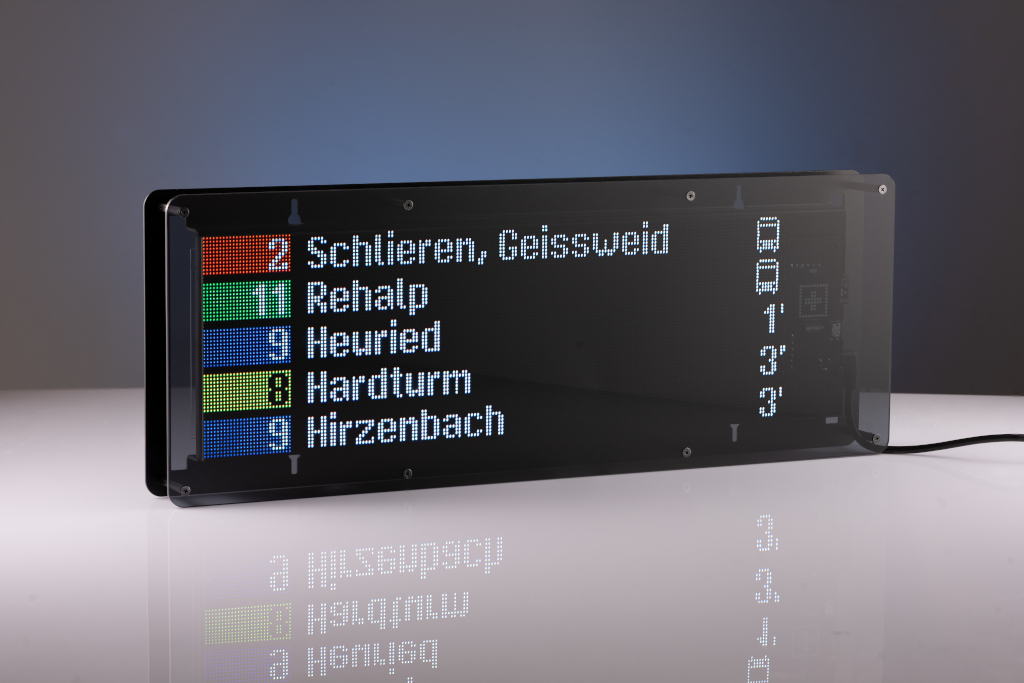

Station Display

The Pulse of Public Transit, Right in Your Space.

Core Features

  • Entire swiss public transport schedule
    Shows the next departures for all of the current stop locations in Switzerland
  • Live data
    Live updates of delays and service alerts (if available)
  • Sleek modern design
    Custom aluminium body with a black powder coating and tinted plexiglass to protect the display

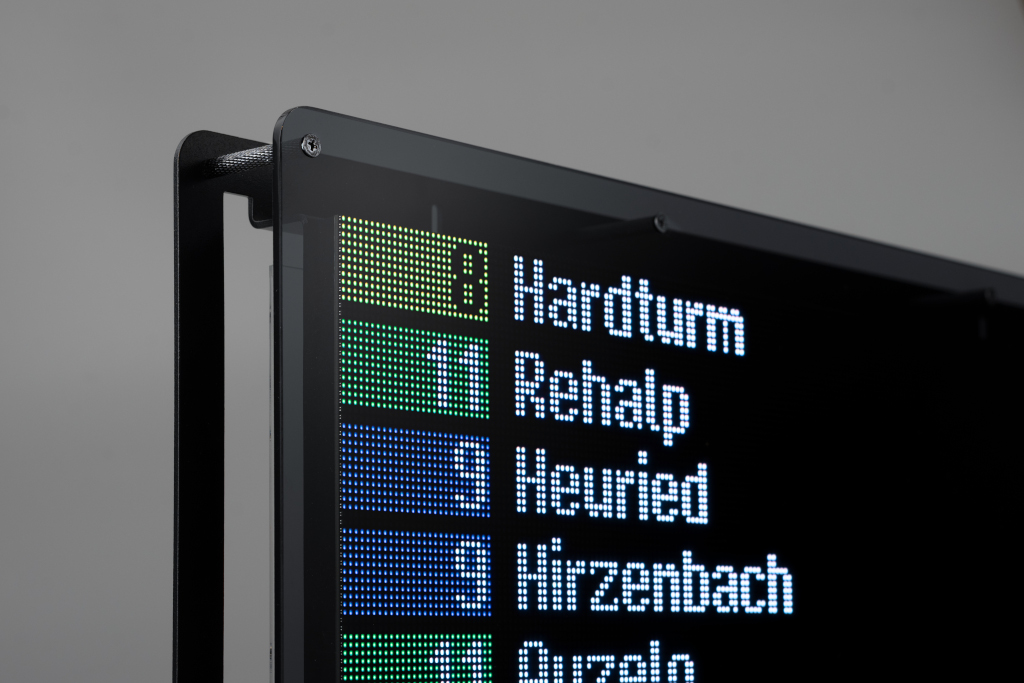

  • Easily readable day and night
    192 x 64 pixel (2mm density) super bright color LED display with auto or fixed brightness
  • Multiple themes
    Choose between the classic theme, one with a title bar or the high contrast theme.
Foto by Foto-Press

In Detail

  • Fits anywhere
    Mount it on your wall or place it on a desk. The back panel features two M3 mounting holes (300mm apart).

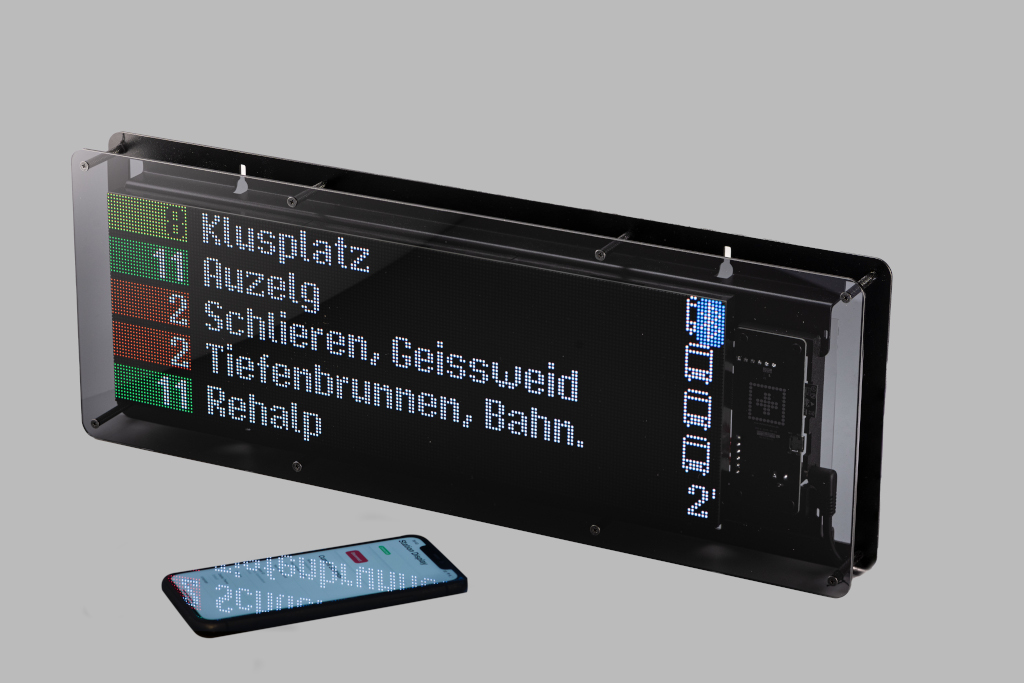

  • App
    Easily configure the display via our Android or iOS App. Alternatively the display can also be configured directly via 3rd party bluetooth apps.
  • Open API
    Set your own data feed. See the API documentation.
Foto by Foto-Press
s

Try It Out

Requirements

  • 2.4 GHz Wi-Fi (802.11 b/g/n) with internet
  • An iOS or Android device with bluetooth (only required for initial configuration)
  • Power outlet
  • Indoor use only
Foto by Foto-Press

Specifications

  • CE Certified
  • Dimensions
    484mm x 178mm x 40mm
  • Power
    5 VDC max. 50W, Average usage: 20W
  • MCU
    ESP32-S3-WROOM-1-N16R2 (unlocked)
  • LED
    2mm pixel pitch, 192 x 64 pixels, SMD1515, 1000 CD/m2 max.
  • Materials
    Frame: black powder coated aluminum, Glass: Tinted Plexiglass

Our Commitment

At Station Display, we believe true innovation builds a sustainable future—not just for our products, but for the people who rely on them. We are firmly committed to the Right to Repair, ensuring you have the freedom to maintain, modify, and extend the life of your hardware. This mission is active today: key components like protocols and PCB design files are available in our Open Source Repository. To fully realize this commitment, we pledge that upon a product's end of life, we will release its complete service documentation, diagnostic software, and firmware. By providing these resources, we empower our community and independent technicians with the tools for longevity, reducing waste and returning true ownership to you.

Github Repository

Alumni of the LaunchControl Program

Contact

If you need support with your hardware or either of the apps please contact us directly at info@stationdisplay.com
